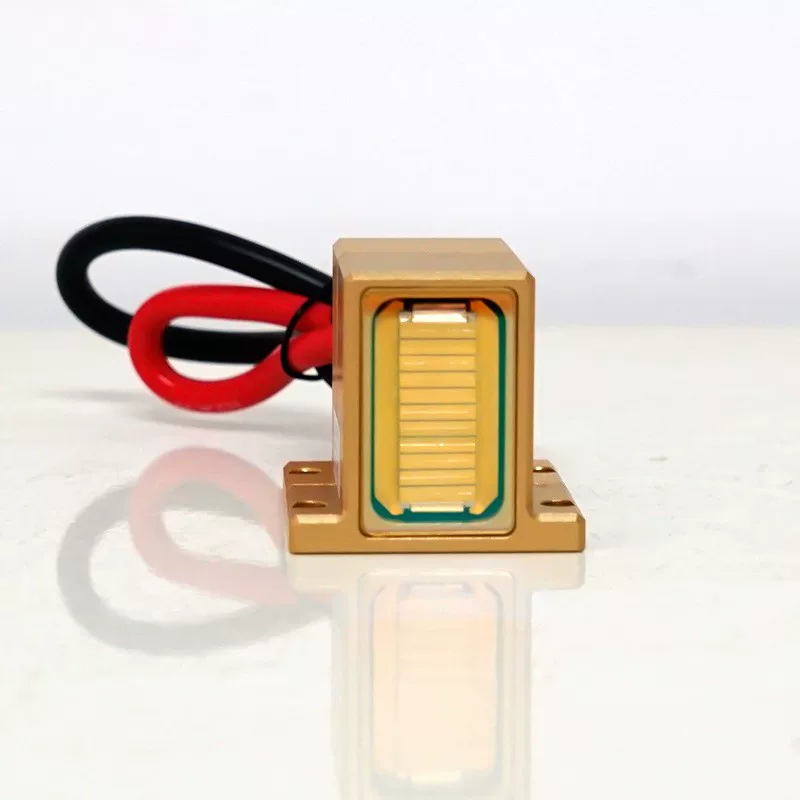

This Macro Channel Diode Laser Stack is engineered with a robust housing, compact dimensions, and a mature macro-channel water cooling design, this stack offers high water quality tolerance and a precisely calibrated 808nm central wavelength. It delivers consistent, high-efficiency output for clinical-grade laser hair removal, serving as a premium upgrade or direct replacement module for beauty salons, clinics, and equipment manufacturers.
Whether you are looking for a reliable component for new machine assembly or a premium upgrade and direct replacement for worn or defective laser modules, this stack is the ideal choice for beauty salons, clinical spas, OEM equipment manufacturers, and professional aftermarket repair services.
Long Service Lifetime & Higher ROI
Paired with a robust chiller or TEC cooling system, a reliable power supply, and a high-performance water pump, this laser delivers exceptional, long-term stability.
Maintaining adequate water flow and a stable power supply are the most critical factors in extending the stack's lifespan. By integrating with top-tier system components, the risk of diode burnout is significantly reduced.
Delivering a steady flow rate of 4.5 L/min via a high-stability water pump—outperforming standard alternatives—this unit achieves an extended lifespan of up to 200 million shots under proper maintenance. It minimizes frequent module replacements and prevents unexpected treatment interruptions, helping clinics boost customer retention and maximize overall operational ROI.
High Power Output
Each bar in the stack typically generates high output power (often 50W to 100W per bar), allowing manufacturers to easily configure stacks ranging from 600W to 2400W+ per stack. This delivers the high energy density required for effective, professional-grade hair removal.
High Wall-Plug (Electro-Optical) Efficiency
Energy Conversion: Premium laser stacks boast wall-plug efficiencies of 50% to over 60%. This means more than half of the electrical power drawn is converted directly into useful laser light, while the rest is converted into waste heat.
Benefit: Higher efficiency minimizes internal thermal stress, reduces strain on the machine's cooling system, and extends the operational lifetime of the diode bars.
Anti-Smile Effect Packaging
During manufacturing, high-power laser bars are soldered onto heat sinks at elevated temperatures. As the materials cool, thermal expansion mismatches can cause the semiconductor bars to bow or curve—a phenomenon known as the "smile effect."
Advanced stacks use hard-solder or solder-free clamping technologies to keep the emitting line completely flat.
A flat bar profile ensures uniform beam overlapping, preventing hot spots and uneven energy delivery across the treatment area.
Multiple Series Available Upon Request
We offer a full range of series, including LST, LAS, DVS, HPL, and GTHM. Simply provide us with your series number, and we will supply the exact match you need.
Professional Engineering Support
We provide reliable technical and engineering support for device repair, module replacement, and complete machine assembly projects.
Come and Send inquiry today for your macro channel diode laser stack at Whatsapp :+8613006899160
Frequently Asked Questions (FAQ)
Q1: How do I know if this macro channel stack is compatible with my existing hair removal machine?
A: We offer a wide range of series (including LST, LAS, DVS, HPL, GTHM, and more). You can simply send us your old module's series number, photos, or dimensional specifications. Our engineering team will match it precisely or recommend a direct, plug-and-play replacement module for your handpiece.
Q2: What are the main requirements to ensure the maximum lifespan (up to 200 million shots) of this laser stack?
A: Proper maintenance is key. To reach optimal longevity, ensure you use deionized (DI) water to prevent mineral buildup, maintain a steady flow rate (around 4.5 L/min), use a reliable power supply with stable current, and keep the cooling system (chiller/TEC) properly serviced.
Q3: Can this stack be used for both new machine manufacturing and old handpiece repair?
A: Yes, absolutely. It is designed both for OEM equipment manufacturers building new machines and for professional aftermarket repair services looking for reliable upgrade or replacement modules for worn-out handpieces.
Q4: What kind of technical support do you provide after purchase?
A: We provide comprehensive professional engineering support. Whether you need guidance on device repair, module replacement, or complete machine assembly and installation, our technical team is here to assist you.
Q5: What is the delivery time and how is the product shipped?
A: Standard models are usually kept in stock for quick dispatch. We use secure, shock-proof industrial packaging to ensure the delicate diode bars arrive safely. Please contact our sales team with your destination for exact lead times and shipping options.
